A small chip in your windshield might seem like a minor issue, but if left untreated, it can quickly become a serious problem. Chips and cracks can expand over time, especially when exposed to temperature changes, road vibrations, or additional impacts. The good news is that with the right tools and a bit of know-how, you can repair small windshield chips yourself, saving time and money.
In this article, we will provide you with step-by-step guidance on how to repair minor windshield chips effectively, the tools you’ll need, and important safety considerations. Before you start, it’s important to understand when a DIY fix is possible and when it’s best to seek professional help.
Understanding Windshield Chips
Windshield chips are small, localized cracks in the glass that usually result from debris hitting the windshield at high speeds. Common culprits include rocks, gravel, or even insects that cause an impact. Depending on the severity of the chip, the damage can be either superficial or more severe. Superficial chips are small, and you may be able to repair them on your own, while larger chips or cracks may require professional intervention.
A windshield chip generally has a few key characteristics:
- Size: Chips are typically small, no bigger than a quarter in diameter. Larger damage may require professional attention.
- Location: Chips near the edge of the windshield or in the driver’s line of sight are often not ideal candidates for DIY repair due to safety concerns.
- Type of Damage: There are various types of chips such as star, bullseye, or combination. Star-shaped chips, where the glass has multiple fractures, are often more difficult to repair effectively at home.
Now, let’s look at the DIY repair process for minor chips.
Materials and Tools You’ll Need
Before you begin the repair, make sure you have the right materials and tools. Here’s a list of items you’ll need to complete the process:
- Windshield Repair Kit: These kits are available at most auto parts stores or online, and they contain everything you need, including resin, injector, and curing film. Look for a kit that specifically mentions it’s for chips.
- Cleaning Solution: You’ll need a cleaning solution or rubbing alcohol to clean the chip area thoroughly before starting the repair.
- Microfiber Cloth: A soft, lint-free cloth will help to clean and wipe down the windshield.
- Masking Tape: This is used to prevent the resin from spreading beyond the chip.
- Plastic Razor Blade or Applicator: A tool to help scrape away excess resin once the repair is complete.
- UV Light (Optional): Some kits come with a UV light to help cure the resin, though natural sunlight often works just as well.
Step-by-Step Guide to Repair Small Windshield Chips
- Inspect the Damage
Before you begin the repair, assess the size and location of the chip. If the damage is smaller than a quarter and not located in the driver’s line of sight, it’s generally safe to proceed with a DIY repair. However, if the crack is larger or in a critical area, it’s recommended to consult a professional for auto collision repair.
- Clean the Area
Cleaning is a crucial step in ensuring the repair resin adheres properly. Use a cleaning solution or rubbing alcohol and a microfiber cloth to wipe away any dirt, debris, or oils from the chip and surrounding area. Make sure the windshield is dry before proceeding with the next steps.
- Position the Repair Kit Injector

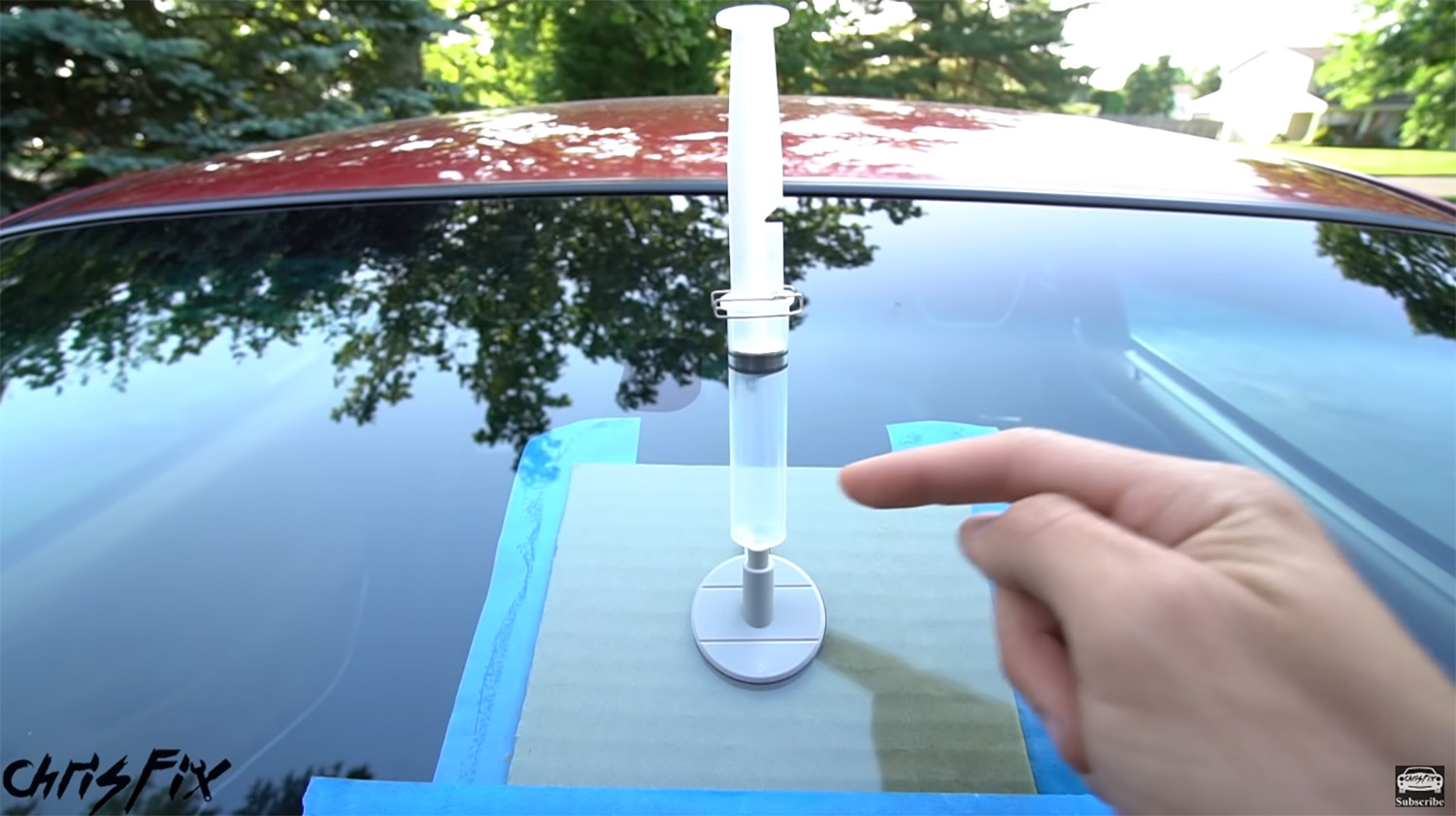

Once the area is clean, place the injector tool from your windshield repair kit directly over the chip. Most kits include a small suction cup or adhesive that you’ll need to place over the damaged area. The injector should be aligned with the center of the chip to ensure the resin fills the cavity properly.
- Inject the Repair Resin
Next, follow the instructions included with your repair kit to inject the resin into the chip. Typically, you’ll use a plunger to force the resin into the crack. Be sure to inject enough resin to fill the entire chip, as you want to eliminate air bubbles to ensure a successful repair. Some kits may require you to let the resin sit for a few minutes to fully penetrate the chip.
- Remove Air Bubbles
After the resin is in place, use the provided plunger or suction tool to remove any air bubbles. Air can prevent the resin from fully bonding with the glass, which is why it’s important to ensure all bubbles are eliminated. Some repair kits come with a vacuum chamber to help with this process.
- Apply Curing Film
Once the resin has been injected and any air bubbles are removed, place the curing film (usually a clear, sticky film) over the chip. This helps keep the resin in place while it sets. Press down gently to make sure the film adheres properly, ensuring a smooth finish.
- Cure the Resin
Allow the resin to cure according to the instructions in your kit. Many kits suggest that the repair be exposed to direct sunlight for a specified period, usually about 30 minutes to an hour. If your kit includes a UV light, use it to accelerate the curing process.
- Scrape Away Excess Resin
After the resin has cured, use a plastic razor blade or applicator to carefully scrape away any excess resin. Be gentle during this process to avoid scratching the glass. The goal is to make the repaired area as smooth as possible with the rest of the windshield.
- Polish the Area
After scraping off the excess resin, polish the area with a microfiber cloth. This will help restore the windshield’s clarity and remove any remaining resin that may have hardened on the surface.
- Inspect the Repair
Finally, inspect the repair to ensure the chip has been filled adequately. If the damage is still visible, you may need to repeat the process or consider contacting an auto collision repair professional for a more permanent solution.
When to Seek Professional Help
While DIY windshield repairs are often effective for small chips, there are certain situations where professional help is needed:
- Cracks Larger Than a Quarter: Larger chips and cracks may not be repairable with a DIY kit and may require a complete windshield replacement.
- Damaged in Critical Areas: If the chip is in your line of sight or near the edge of the windshield, professional repair may be necessary to ensure the safety and integrity of the windshield.
- Multiple Chips or Extensive Damage: If your windshield has multiple chips or if the damage is extensive, it’s better to consult an expert to ensure that the repair is done correctly and safely.
Important Tip: If you’re unsure whether your chip is something you can handle yourself or if it’s a more serious issue, consider reaching out to a professional auto glass service. Regular maintenance and addressing issues early on can prevent further damage and potential safety risks.
Additional Tips for Maintaining Windshield Integrity
To prevent future chips and cracks, here are some tips:
- Avoid driving behind large trucks or vehicles that may kick up debris.
- Regularly inspect your windshield for any signs of damage.
- Clean your windshield regularly to prevent the buildup of dirt and grime that can weaken the glass.
- Use a windshield protector during extreme weather to protect against rocks, hail, or temperature changes.
For more tips on general vehicle maintenance, including addressing common auto issues, check out our common auto issues page. Understanding these issues and how to handle them proactively will help keep your car in top shape.
By following the steps outlined above, you can repair minor windshield chips effectively and prevent further damage. If you’re dealing with more severe issues, don’t hesitate to reach out to experts for assistance. A well-maintained windshield not only enhances your driving experience but also ensures the safety of you and your passengers on the road.
